SUN-L1PE Series
- Category：On/Off Grid Solar Inverter
- Clicknum：次
- Intro：
● Ip65 Protection rating
● Pure sine wave solar inverter(Hybrid Inverter)
● WIF|& GPRS available for IOS and Android
● One-key restoration to default Settings
● Built-in Lithium battery automatic activation
- Detail
Features
● Ip65 Protection rating
● Pure sine wave solar inverter(Hybrid Inverter)
● WIF|& GPRS available for IOS and Android
● One-key restoration to default Settings
● Built-in Lithium battery automatic activation
● Built-in 120A MPPT Solar charge :max 6000W
● High PV input voltage range(60~ 500VDC)
● Smart battery charge design to optimize battery life
● Dual PV input
● Parallel operation up to 9 units

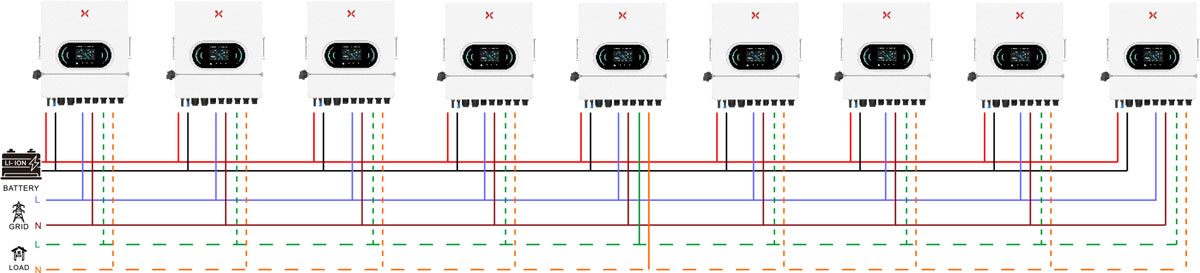

Parallel Operation in Single phase Nine inverters in parallel power Connection

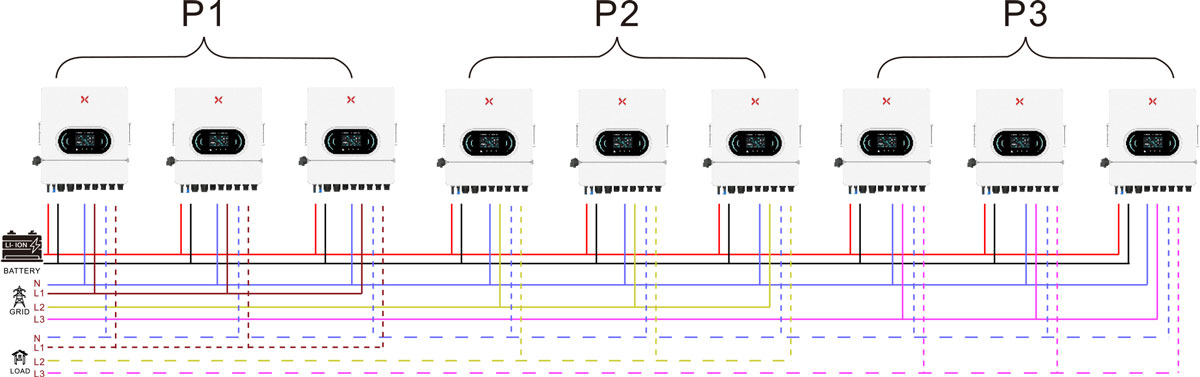

Parallel Operation in 3 phase Nine inverters in parallel power Connection
Product Data Sheet
| MODEL | SUN-6KW-L1PE |
| PV TERMINAL | |
| Maximum PV Input Power | 6000W |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| MPPT Voltage Range | 60V~450VDC |
| MPPT Full Load Voltage Range | 230V~450VDC |
| Maximum Input Current | 18A |
| Maximum Short circuit Current | 27A |
| MPPT Traker/Strings | 2/2 |
| ON-GRID TERMINAL | |
| Nominal Output Apparent Power | 6000VA |
| Maximum Output Apparent Power | 6000VA |
| Nominal Output Voltage | 230VAC |
| Nominal Operating frequency | 50Hz |
| Nominal Output Current | 26A |
| Power Factor(Cos phi),Adjustable | 0.8 leading~0.8 lagging |
| BATTERY TERMINAL | |
| Battery Voltage | 48VDC |
| Battery Voltage Range | 40~60VDC |
| Maximum Charging Current | 120A |
| Maximum Discharge Current | 135A |
| BACK-UP TERMINAL | |
| Nominal Output Apparent Power | 6000VA/6000W |
| Nominal Output Current | 30A |
| Nominal Output Voltage | 220/230/240Vac |
| Nominal Operating frequency | 50/60Hz |
| INTERACE | |
| Parallel Function | 9 units |
| PHYSICAL | |
| Dimension ,H*W*D(mm) | 501*470*218 |
| Cartoon Dimension ,H*W*D(mm) | 560*525*315 |
| Net Weight (kgs) | 20.5 |
| Gross Weight(kgs) | 22.5 |
| OPERATING ENVIRONMENT | |
| Altitude | ≤2000m |
| Operating Temperature | -25℃~60℃, derating 50℃ |
| STANDARD | |
| Compliance Safety | CE |
