NM-ECO-LV Series
- Category：On/Off Grid Solar Inverter
- Clicknum：次
- Intro：
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0

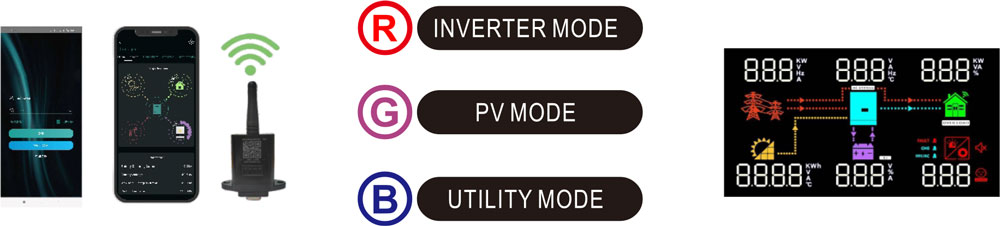

● WIFI&GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
- Detail
Features
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0
● WIFI&GPRS available for IOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Built-in Lithium battery automatic activation
● AC output voltage 120VAC
● Built-in 120AMPPT Solar charge: max 4200W (for 3.6kW); max 6000W (for 6.2KW)
● High PV input voltage range(60~500VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Dual output
Product Data Sheet
| MODEL | VICTOR NM-ECO-LV-3.6KW PLUS | VICTOR NM-ECO-LV-6.2KWPLUS |
| Phase | 1-phase | |
| Maximum PV Input Power | 4200W | 6000W |
| Rated Output Power | 3600W/3600VA(3000/3150/3300) | 6200W/6200VA(5300/5500/5700) |
| Maximum Solar Charging Current | 120A | 120A |
| GRID-TIE OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Maximum Input Current | 1/18A | 1/22A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 120VAC(100/105/115Vsettable) | |
| Output Voltage Range | 90-150VAC | |
| Nominal Output Current | 30A | 51.7A |
| Power Factor | >0.99 | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency(DC/AC) | 98% | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 3600W | 6200W |
| Maximum Main Load | 3600W | 6200W |
| Maximum Second Load(battery mode) | 1200W | 2067W |
| Maximum Load Cut Off Voltage | 26VDC | 52VDC |
| Maximum Load Return Voltage | 27VDC | 54VDC |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 110VAC/120VAC | |
| Acceptable Input Voltage Range | 90~150VAC±2% | |
| Frequency Range | 50±1Hz/60±1Hz | |
| Maximum AC Input Current | 40A | 80A |
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Maximum Input Current | 1/18A | 1/22A |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 120VAC(100/105/115Vsettable) | |
| Output Wave Form | Pure sine wave | |
| Efficiency (DC to AC) | 94% | |
| BATTERY&CHARGER | ||
| Nominal DC Voltage | 24VDC | 48VDC |
| Maximum Solar Charging Current | 120A | 120A |
| Maximum AC Charging Current | 100A | 100A |
| Maximum Solar+AC Charging Current | 120A | 120A |
| HYBRID OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/Initial Feeding Voltage | 60VDC/120VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Maximum Input Current | 1/18A | 1/22A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 120VAC(100/105/115V settable) | |
| Output Voltage Range | 90-150VAC | |
| Nominal Output Current | 30A | 51.6A |
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/100VAC | |
| Acceptable Input Voltage Range | 90-150VAC | |
| Maximum AC Input Current | 40A | 80A |
| Maximum Charging Current | 120A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension ,H*W*D(mm) | 420*350*110 | |
| Carton Dimension ,H*W*D(mm) | 500*415*180 | |
| Net Weight (kgs) | 8.8 | 9.5 |
| Gross Weight(kgs) | 10 | 11.5 |
| INTERFACE | ||
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃~50℃ | |
| STANDARD | ||
| Compliance Safety | CE | |
