10kwh Frequency Inrerter

Category：Cabinet Type LiFePL Battery
Clicknum：次
Intro：
COMPACT AND ELEGANT DESIGN, UNIQUE ART DESIGN AND CONVENIENT OUTTPUT CONNECTION PORT.

Application

Features

- CONVENIENT INSTALLATION, INTEGRATING SOLAR CONTROLLER, INVERTER AND BATTERY ALL IN ONE MACHINE.

- COMPACT AND ELEGANT DESIGN, UNIQUE ART DESIGN AND CONVENIENT OUTTPUT CONNECTION PORT.

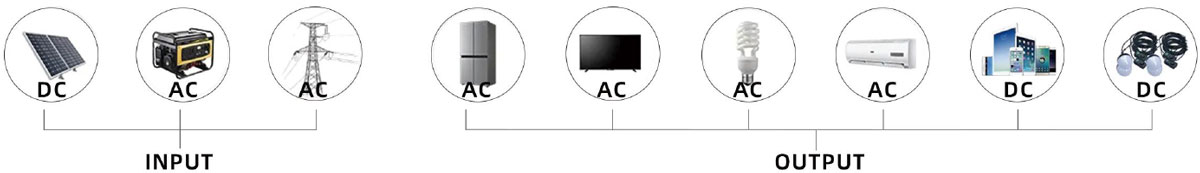

- FLEXIBLE ENERGY STORAGE CAPACITY, SUPPORTING THREE

CHARGING METHODDS:

SOLAR POWER, PETROL AND DIESEL GENERATOR, AND GRID POWER.

- SUPPORT WIFI OR APP MONITORING.

- WITH OVERVOLTAGE, OVERTEMPERATURE, OVERLOAD, BATTERY BMIS COMMUNICATION

FREQUENCY INVERTER

Model E5S-Li	502H/200
Power
Rated Power	5000W
Battery
Standard Battery Voltage	51.2VDC
Maximum charging current (mains + photovoltaic)	90A
Maximum photovoltaic / mains charging current	60A/30A
AC Input Voltage
AC105V-120V model: 105VAC110VAC 115VAC120VAC (can be set); AC220V-240V model: 220VAC230VAC240VAC (can be set)
AC Input Frequency	45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
AC Output
Output Wave	Pure Sine Wave
Conversion efficiency (INV mode)	>85%
Output Voltage/Frequency (INV mode)	110VAC/120VAC/220VAC/230VAC/240VAC; 50Hz±1%, 60Hz±1%(canbeset)
MPPT Solar Charge Controller
Max PV Input Voltage (Voc)	180VDC
PV Array Maximum Power	3360W
MPPT Tracking Voltage Range	60V-140VDC
Protection	Battery undervoltage protection/Battery overvoltage protection/Battery overvoltage recovery voltage/Overload power protection/Short circuit protection/Overseetemperature protection
Display	LCD
Cooling Method	Cooling fan in intelligent control
Communication	RS485 communication / APP (WIFI/GPRS data collector) optional
Working Mode	Inverter priority/mains priority/energy saving mode
Operating Temperature	-10℃~40℃
Relative Humidity	0%~95% (No condensation)
Size
Product Size(LWHmm)	5403251157
Package Size(LWHmm)	6003851285
N.W.(kg)(excluding battery)	147.5kg±2.5kg
G.W.(kg)(excluding battery)	157.5kg±2.5kg

LIFEPO4 BATTERY Specifications

NOMINAL VOLTAGE		51.2V
NOMINAL CAPACITY		200AH
Electrical Parameters (25°C)	Rated Voltage	51.2V
	Rated Capacity(C5)	200Ah@25°C
	Energy	10240Wh
	Months Self Discharge	≤3%
	Charge Efficiency	99.5%@0.2C
	Discharge Efficiency	96-99%@1C
	Terminal Diameter	M8
Internal resistance (Fully charged, 25°C)		≤30mΩ
Cycle life		>8000 cycles @0.2C 80%D.O.D
Capacity affected by temperature	40°C	101%
	-10°C	75%
Water Dust Resistance		IP20
Mechanical	Cells	16 Strings
	Container	Metal
Nominal operating temperature		25°C±3°C (77°F±5°F)
Operating temperature range	Discharge	-20°C~60°C (-4°F~140°F)
	Charge	0°C~45°C (32°F~113°F)
	Storage	0°C~40°C (32°F~104°F)
Charge Current		60A
Maximum Charge Current		200A
Charge Cut off Voltage/Charge Voltage		58.4V
Continuous Discharge Current		200A
Maximum Pulse Current		200A (≤500μs)
Discharge Cut Off Voltage		43.2V
Communicate Protocol (optional)		RS485
Optional add-on features		Bluetooth/Heating
Standard Charge Mode (25°C±2°C, ≤75%RH)		0.2CA Constant Current to 58.4V, then Constant Voltage 58.4V until the current drops to 0.02CA, before use, rest 30 minutes
