SAK Series
- Category：Car Inverter/Power Inverter
- Clicknum：次
- Intro：
● Pure sine wave inverter
● Maximum efficiency 92%
● Protection funtion:input under voltage protection, input over voltage protection,overload protection, short circuit protection,over temperature protection
● Application:home,office,vehice,yacht and other ocasions
- Detail
Features
● Pure sine wave inverter
● Maximum efficiency 92%
● Protection funtion:input under voltage protection, input over voltage protection,overload protection, short circuit protection,over temperature protection
● Application:home,office,vehice,yacht and other ocasions
Remote(optional)

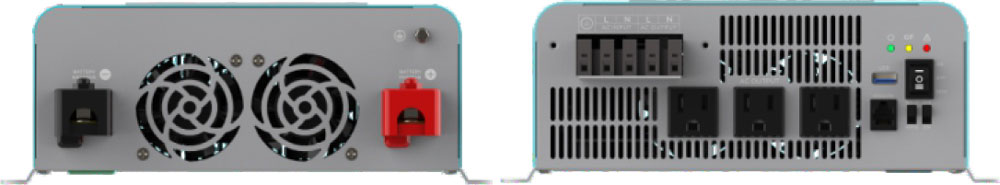

Overview

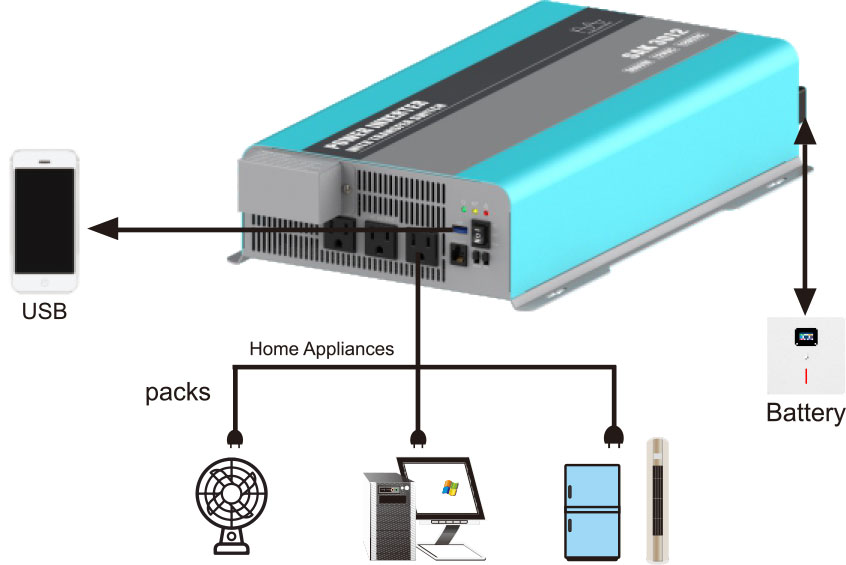

Connection
Product Data Sheet
| MODEL | SAK-3012 |
| DC INPUT | |
| Rated Input Voltage | 12V |
| Rated Current | 320A |
| Maximum Efficiency | 92% |
| Battery Type | Lead acid/Lithium battery |
| AC OUTPUT | |
| Rated Power | 3000W |
| AC Voltage | 120V |
| Frequency | 50Hz/60Hz |
| Wave Form | PURE SINE WAVE |
| INPUT PROTECTION | |
| Battery Low Voltage Alarm | 11.0V±0.5V |
| Battery Low Voltage Recovery | 12.0V±0.5V |
| Battery Low Voltage Shutdown | 10.5V±0.5V |
| Battery Low Voltage Shutdown Recovery | 12.6V±0.5V |
| Battery High Voltage Alarm | 15.5V±0.5V |
| Battery High Voltage Alarm Recovery | 14.5V±0.5V |
| Battery High Voltage Shutdown | 16.0V±0.5V |
| Battery High Voltage Shutdown Recovery | 15.0V±0.5V |
| OUTPUT PROTECTION | |
| Output Short Circuit Protection | After the fault is eliminated, it can be rebooted |
| Overload Protection | 110%≤Load < 149%, 1 minute shutdown |
| 150%≤Load < 199%, 10S shutdown | |
| 200%≤Load, 2S shutdown | |
| Output Temperature Protection | Heat dissipation temperature>90℃ |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -20℃~45℃ |
| Humidity | 0-80% |
| OTHER | |
| Dimension(mm) | 498*263*95 |
| Remote Control Switch Interface | Standard Configuration |
| USB | 5V 2A |
