EP4000 2KW-12V/24V
- Category：Off Grid Solar Invetert
- Clicknum：次
- Intro：
● Pure sine wave output inverter
● According to the requirements of load (household appliances/personal computers), the input voltage range of utility grid can be selected
● According to the battery requirements, the charging current can be set through LCD
● Solar energy and utility grid can power loads at the same time
- Detail
Features
● Pure sine wave output inverter
● According to the requirements of load (household appliances/personal computers), the input voltage range of utility grid can be selected
● According to the battery requirements, the charging current can be set through LCD
● Solar energy and utility grid can power loads at the same time
● AC input is compatible with mains and generator
● Automatic restart function when mains power is restored
● Overload/ Over temperature/ short circuit protection
● The intelligent charging design of battery makes the battery more fully uilized
● RS485 port Used for communication with BMS
● Cold start function
● Builtin MPPT, operating voltage range 1 5V~60V, open circuit voltage 60Voc

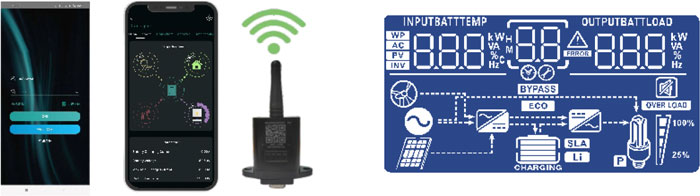

● WIFI remote monitoring, Blue tooth near end sampling
● Leakage current protection function

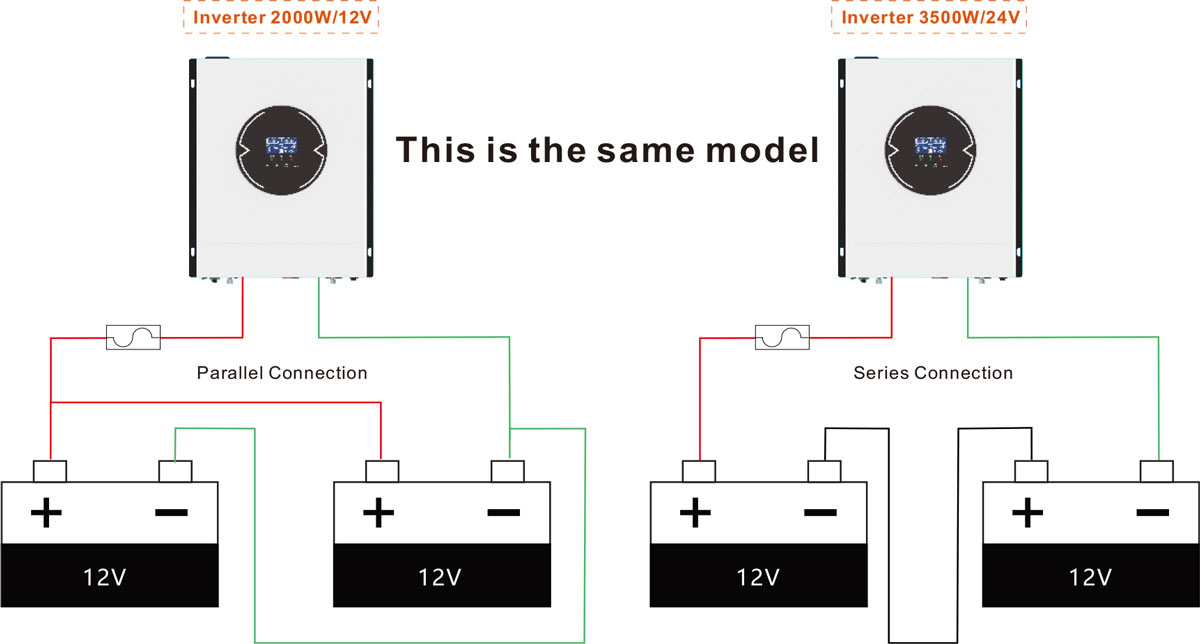

● 12V/24V battery adaptive, 12V rated voltage can carry 2000W,24V rated voltage can carry 3500W One machine dual-use, the world's first of its kind
One machine dual-use, the world's first of its kind
! 12V/24V battery adaptive, 12V rated voltage can carry 2000W,24V rated voltage can carry 3500w
Product Data Sheet
| MODEL | EP4000 2KW-12V/24V |
| Rated Power | 2000W/3500W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) |
| Frequency Range | 50 Hz/60Hz(Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation(Batt.Mode) | 230VAC ±5% |
| Surge Power | 4000W/7000W |
| Efficiency(Peak) Battery to INV | 98% |
| Transfer Time | 10ms(For personal Computers);20ms(For Home Appliances) |
| BATTERY&AC CHARGE | |
| Battery Voltage | 12V/24VDC |
| Floating Charge Voltage | 13.5V/27VDC |
| Overcharge Protection | |
| Maximum Charge Current | 100A |
| SOLAR CHARGE | |
| Maximum PV Array Power | 500W |
| MPPT Range @ Operating Voltage | 15~48VDC |
| Maximum PV Array Open Circuit Voltage | 60VDC |
| Maximum Charging Current | 20A |
| Maximum Efficiency | |
| PHYSICAL | |
| Dimension. H*W*D(mm) | 390*323*115 |
| Net Weight(kgs) | 6.2 |
| Communication interface | RS485/WIFI |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -15℃ ~ 60℃ |
